Double Sided Flat Grille

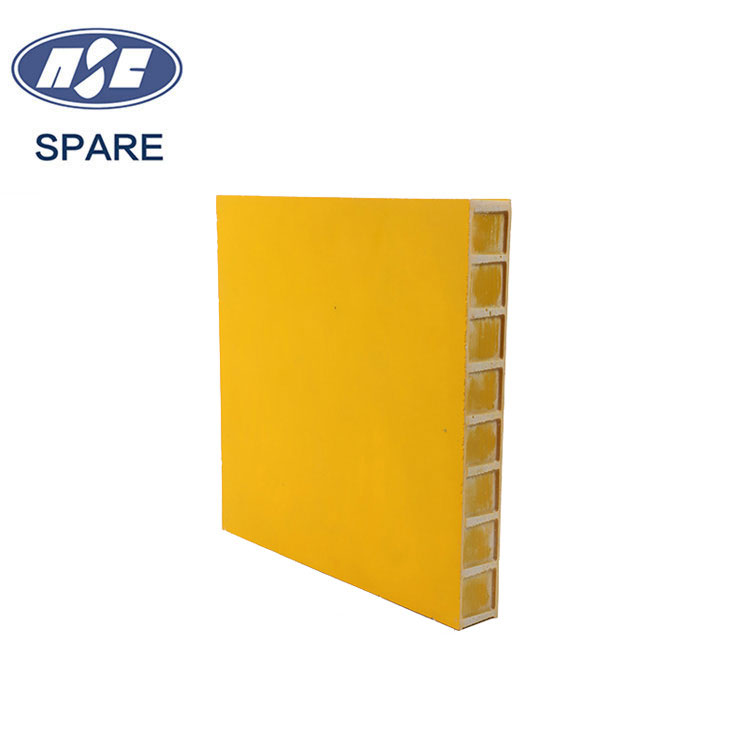

The double sided flat grille is a molded grating bonded with a hand-laid FRP plate to form a structural plate with one or both sides closed.

Send Inquiry

The double sided flat grille is a molded grating bonded with a hand-laid FRP plate to form a structural plate with one or both sides closed. The cover plate grating produced by our company has high strength and can work in heavy-load environments.;

The covering plate grille can also effectively isolate the volatilization of odor and protect the environment.The grille part of the cover plate grille can choose our company's existing molded grille; the thickness of the cover plate can be 3-12 mm; it can be designed according to specific load requirements.

We offer standard cover panel grating specifications:

Total thickness	Structure	Grille Specifications	Weight	Standard Size
28	25+3	38*38	17.6	12203660/12204040
31	3+25+3	38*38	23
33	30+3	38*38	20.4
36	3+30+3	38*38	25.8
41	38+3	38*38	24.5
44	3+38+3	38*38	29.9
43	40+3	40*40	24.4
46	3+40+3	40*40	29.8
55	50+5	50*50	31	12203660/12204020
