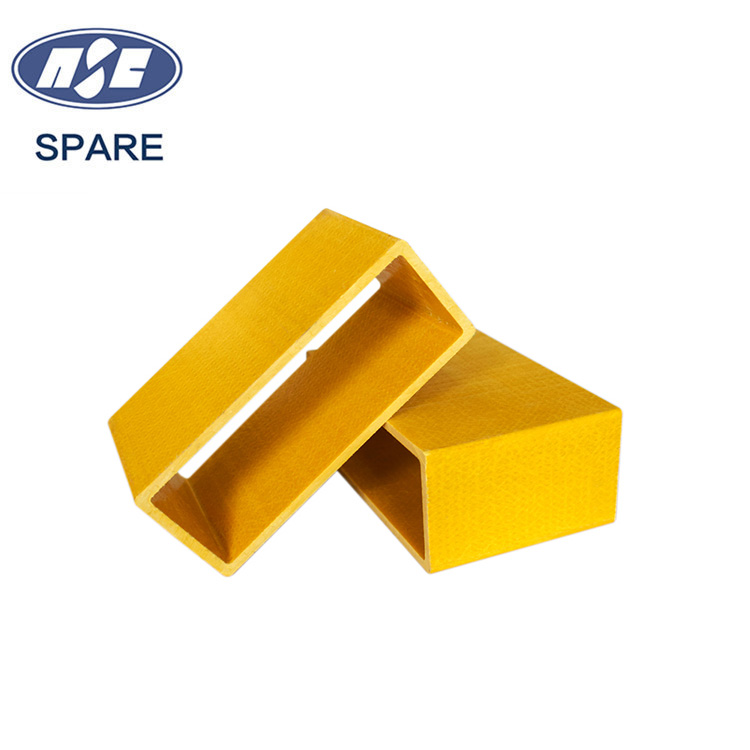

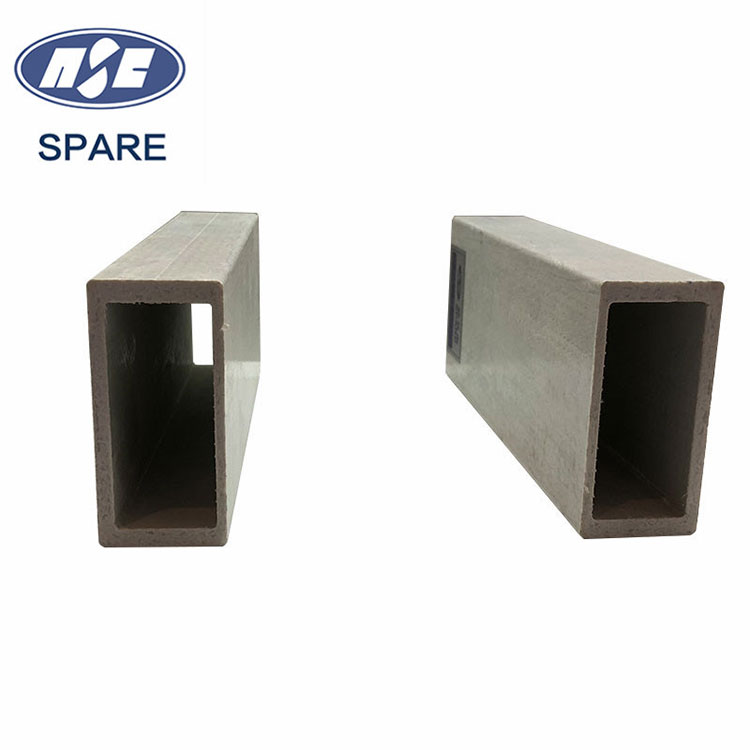

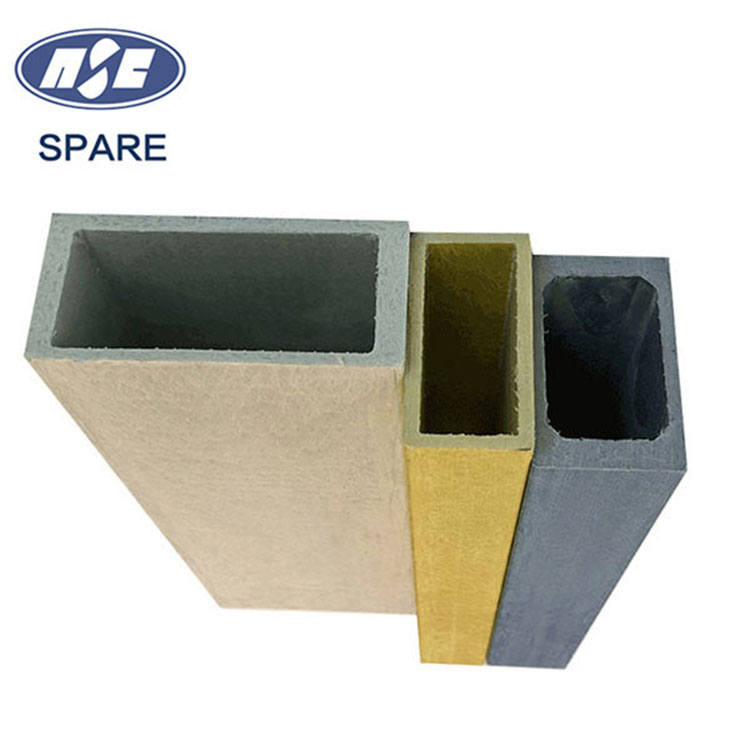

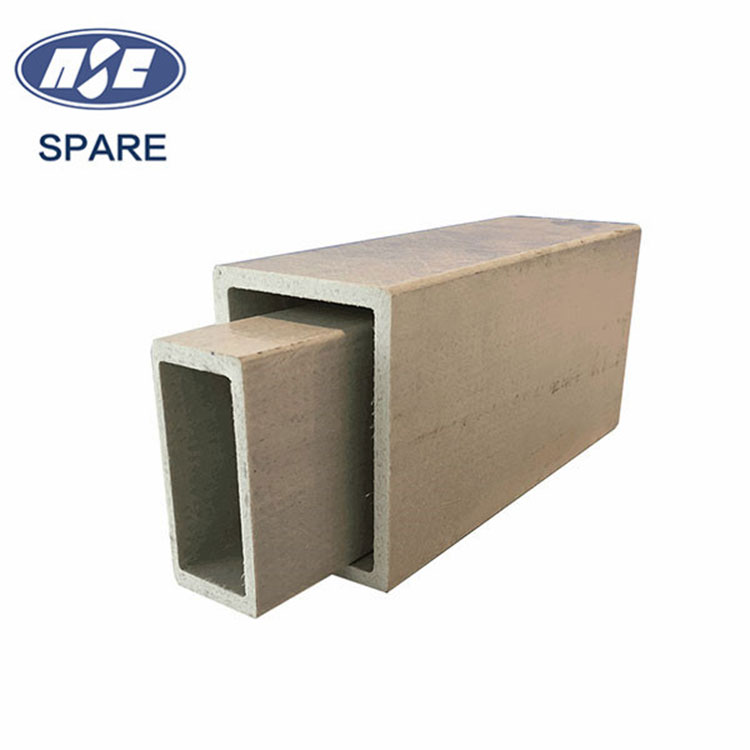

FRP Rectangular Tube

Engineered from durable fiberglass, this FRP rectangular tube offers high strength and corrosion resistance. Ideal for applications requiring structural integrity and versatility in diverse environments.

Send Inquiry

Product Specification

Rect Tube	No.	A	B	t1/t2	Serial Number
	1	800	300	3.5/10	J-0846
	2	190.5	45.212	2.46	J-0711
	3	160	60	3.5	J-0512
	4	152.4	101.6	9.5/9.5	J-0071
	5	140	60	7	J-0858
	6	130	60	3.5	J-0513
	7	120	90	10	J-0692
	8	120	60	7/7	J-0483
	9	101.6	50.8	3.125/6.35	J-0070
	10	101.6	50.8	5/5	J-0070
	11	101.6	50.8	8.05/8.55	J-0062
	12	100	50	4	J-0799
	13	95.5	45.5	4	J-0069
	14	90	40	4/7	J-0068
	15	87.5	77	3.1	J-0863
	16	75(75.9)	35(35.3)	3.5/5(3.5/5.7)	J-0073
	17	75	35	4.7/7.1	J-0532
	18	65.5	30	4/5	J-0065
	19	63.5	37	3.5/3.5	J-0066
	20	60	36	2/2	J-0608
	21	60	20	2	J-0753
	22	50.8	40.64	2.28	J-0712
	23	50.8	30	3/6.35	J-0072
	24	50	30	3	J-0800
	25	50	25	3/3	J-0368
	26	48	31	4/4	J-0261
	27	40	30	2.5	J-0784
		38	37.6	1.8/2	J-0877
	28	38	15	3/3	J-0263
	29	38	23.8	5/5	J-0074
	30	37	20	2.5/2.5	J-0333
	31	27.7	13.6	3/3	J-0064
	32	22	20	3/3	J-0511
	33	19	14	2	J-0856
	34	18.16	10.8	2.286/2.286	J-0063
	35	95	68	6/6	J-0412
	36	120	60	3	J-0451
	37	190	90	4	J-0450
	38	210	110	4	J-0449
	39	80	40	4	J-0618
	40	25	16	2	J-0763
	41	19	16	2	J-0808
	No.	A	B	t1/t2	Serial Number
	1	280	200	6/5	J-0907
	2	260	150	5/4	J-0909
	No.	A	B	t1/t2	Serial Number
	33	68	32	3.2/3.6	J-0264

FRP Rectangular Tube

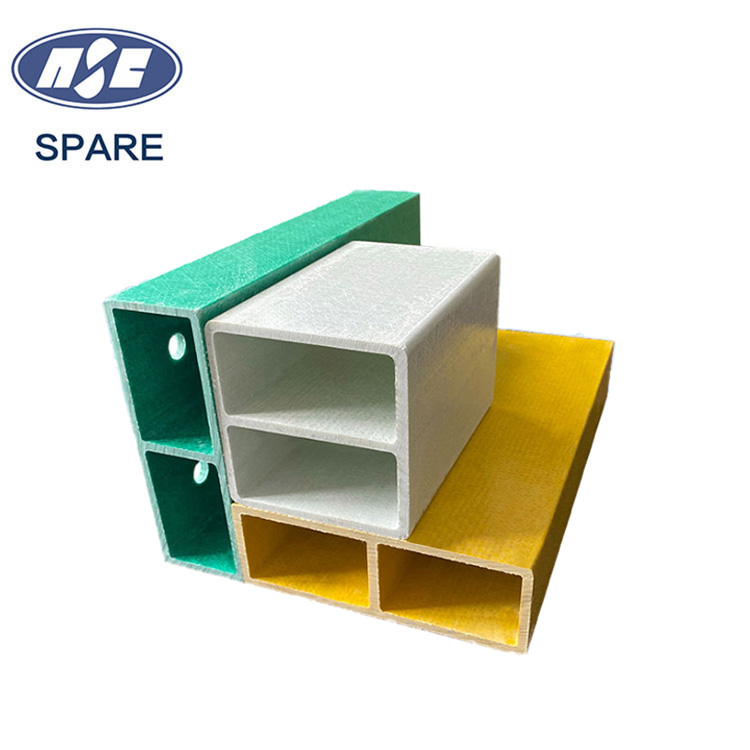

FRP square tubes, also known as fiberglass square tubes, encompass both square and rectangular profiles, featuring equal and unequal side lengths. Notably distinct from square tubes of other materials, FRP square tubes offer unique properties and advantages.

FRP pultruded square pipe is a uniform cross-section structural profile formed by continuous pultrusion process. Compared with pipes made of other materials, it has the following significant characteristics:

1. FRP square pipes are corrosion-resistant, environmentally friendly and pollution-free: FRP square pipes can resist the erosion of acids, alkalis, salts, seawater, untreated sewage, corrosive soil or groundwater and many chemical fluids. Fiberglass pipes are non-toxic, rust-free, odorless, have no secondary pollution to water quality, and do not require anti-corrosion.

2. FRP square and rectangular tubes have the characteristics of heat resistance and frost resistance: at -30℃, they still have good toughness and extremely high strength, and can be used for a long time in the range of -50℃-80℃. They are made of high-temperature resistant resin. The square tubes produced can also work at temperatures above 110°C.

3. FRP square rectangular tubes are light in weight and high in strength: their specific gravity is 1.65-2.0, only 1/4 of steel, but the circumferential tensile strength of FRP tubes is 180-300MPa, and the axial tensile strength is 60-150MPa, which is approximately alloy steel.

4. Good electrical insulation. FRP is a non-conductor. The electrical insulation of pipes is excellent. The insulation resistance is 1012-1015ΩNaN. It is most suitable for use in power transmission. The heat transfer coefficient of FRP is very small, only 0.23 in areas with dense telecommunications lines and areas with many mines. It is five thousandths that of steel.

Due to the above-mentioned corrosion resistance, wear resistance, frost resistance and anti-fouling properties of FRP square and rectangular pipes, the project does not require anti-rust, anti-fouling, insulation, heat preservation and other measures and maintenance. FRP square and rectangular pipes can be customized according to the user's various requirements. Requirements, such as different flow rates, different pressures, and different load conditions, require the design and manufacture of pipelines with different pressure levels and stiffness levels.
